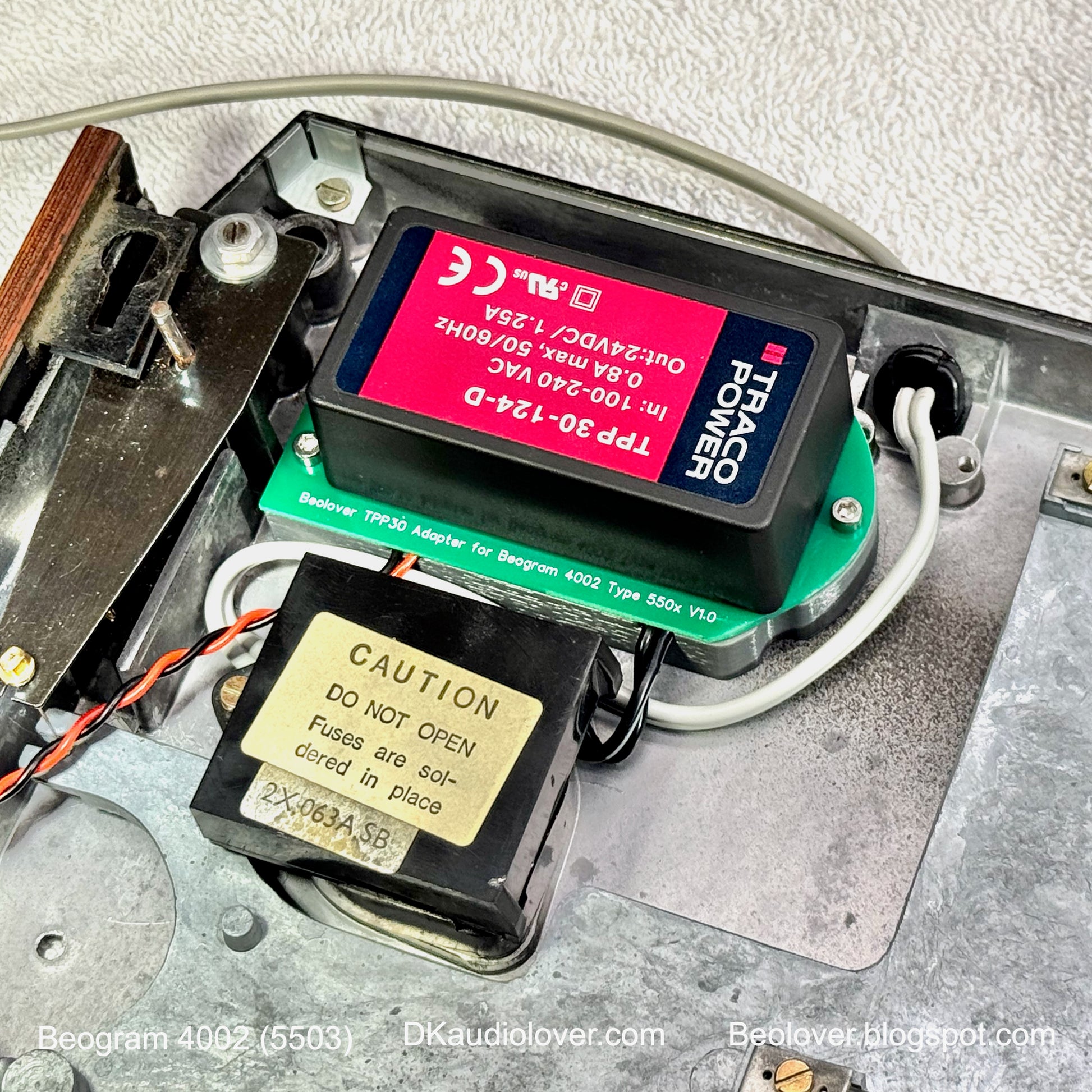

Transformer Replacement Kit for Beogram 4002 (Types 5503)

• Direct drop in replacement for the original transformer in AC platter motor Beograms.
• Modern medical grade fully encapsulated 30W power supply that can run on line voltages from 100V to 240V.
• Short circuit protected.
• Fixes issues like shorted or humming original transformers.

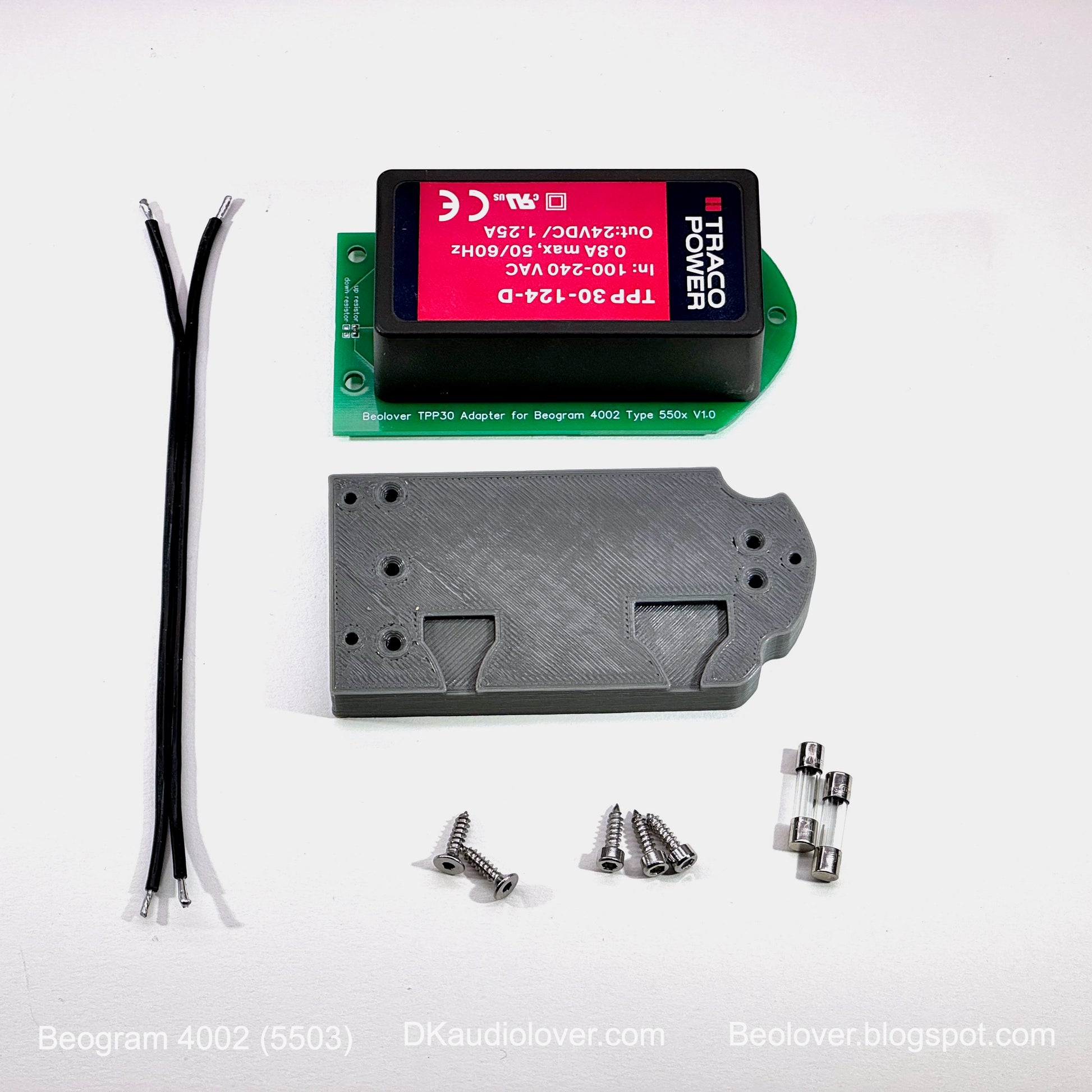

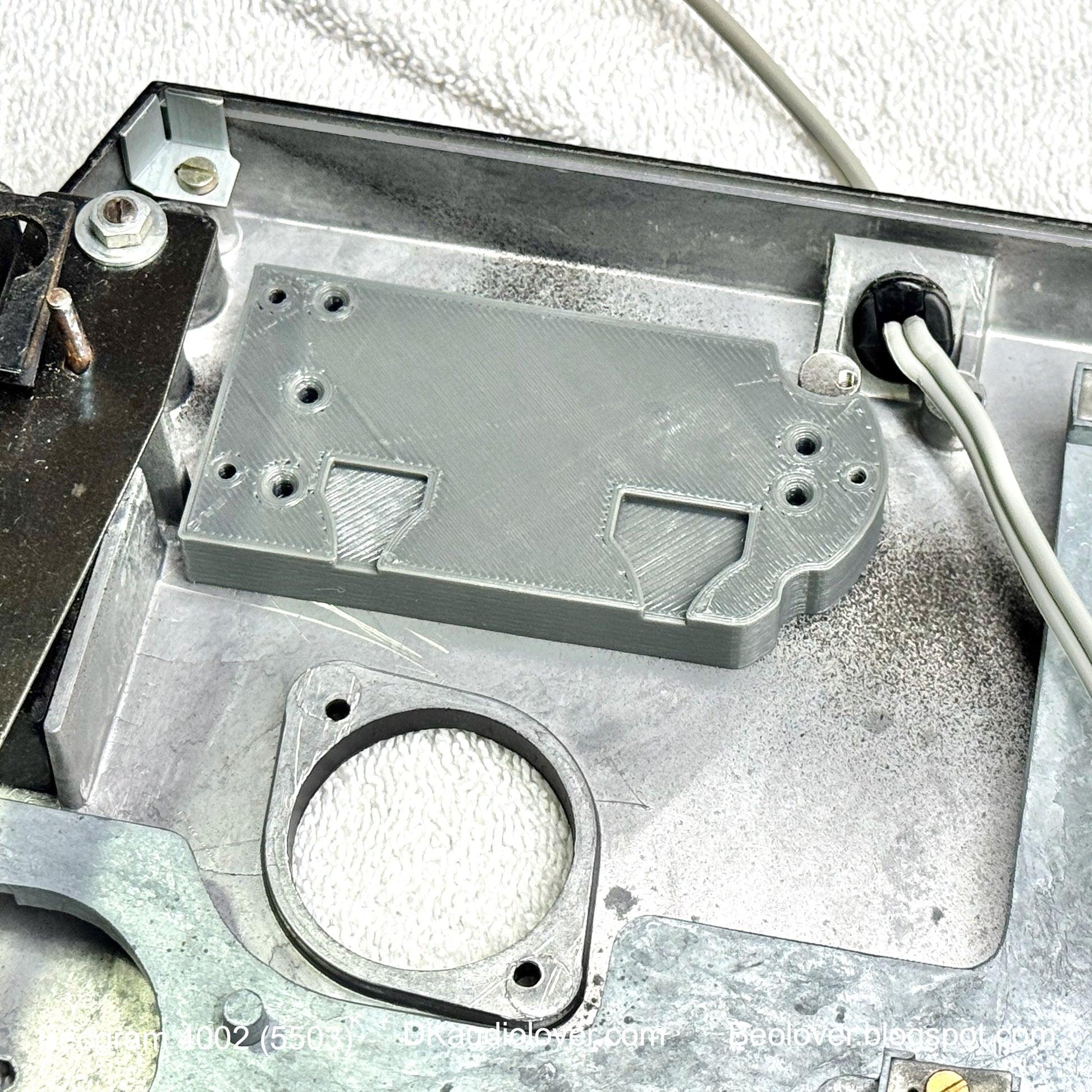

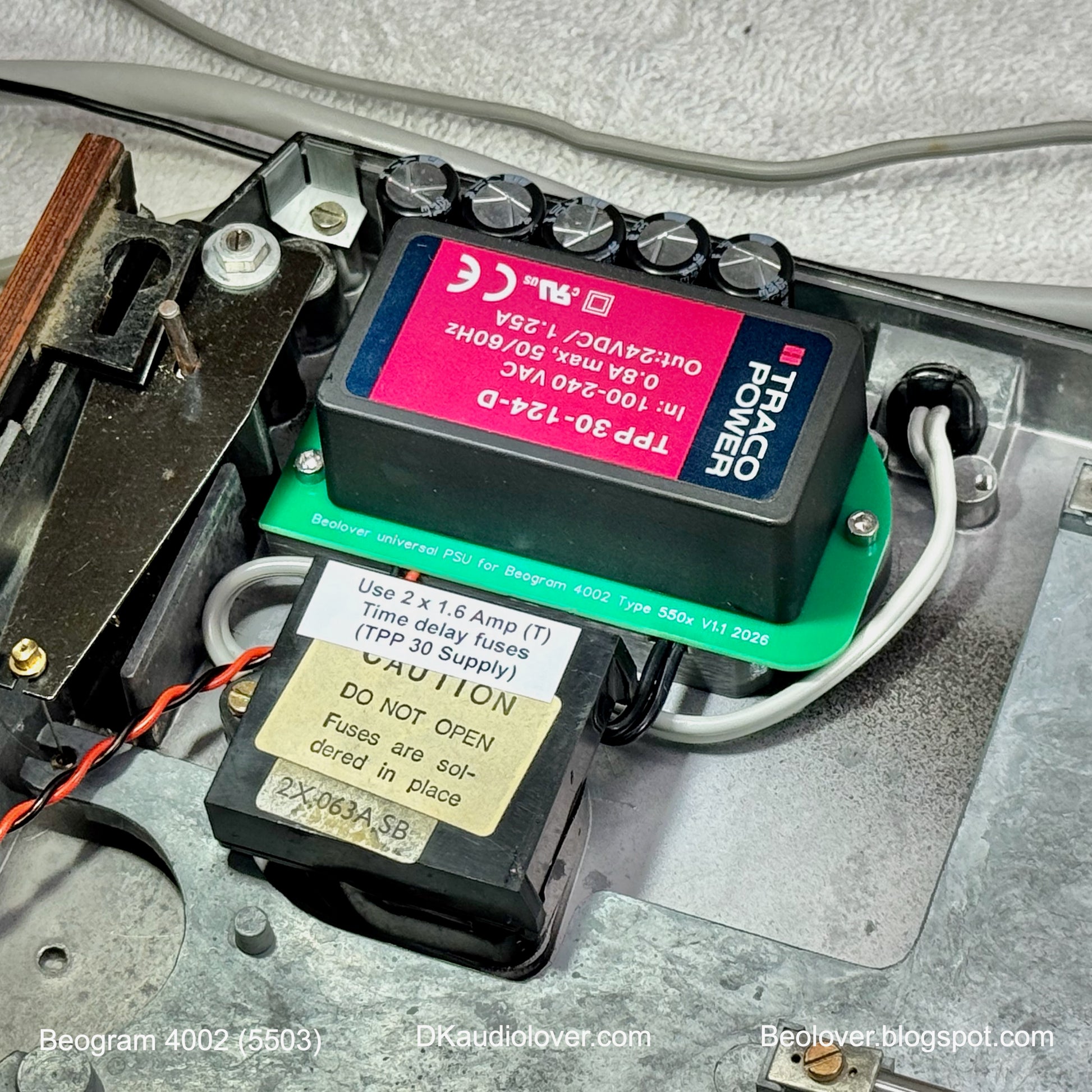

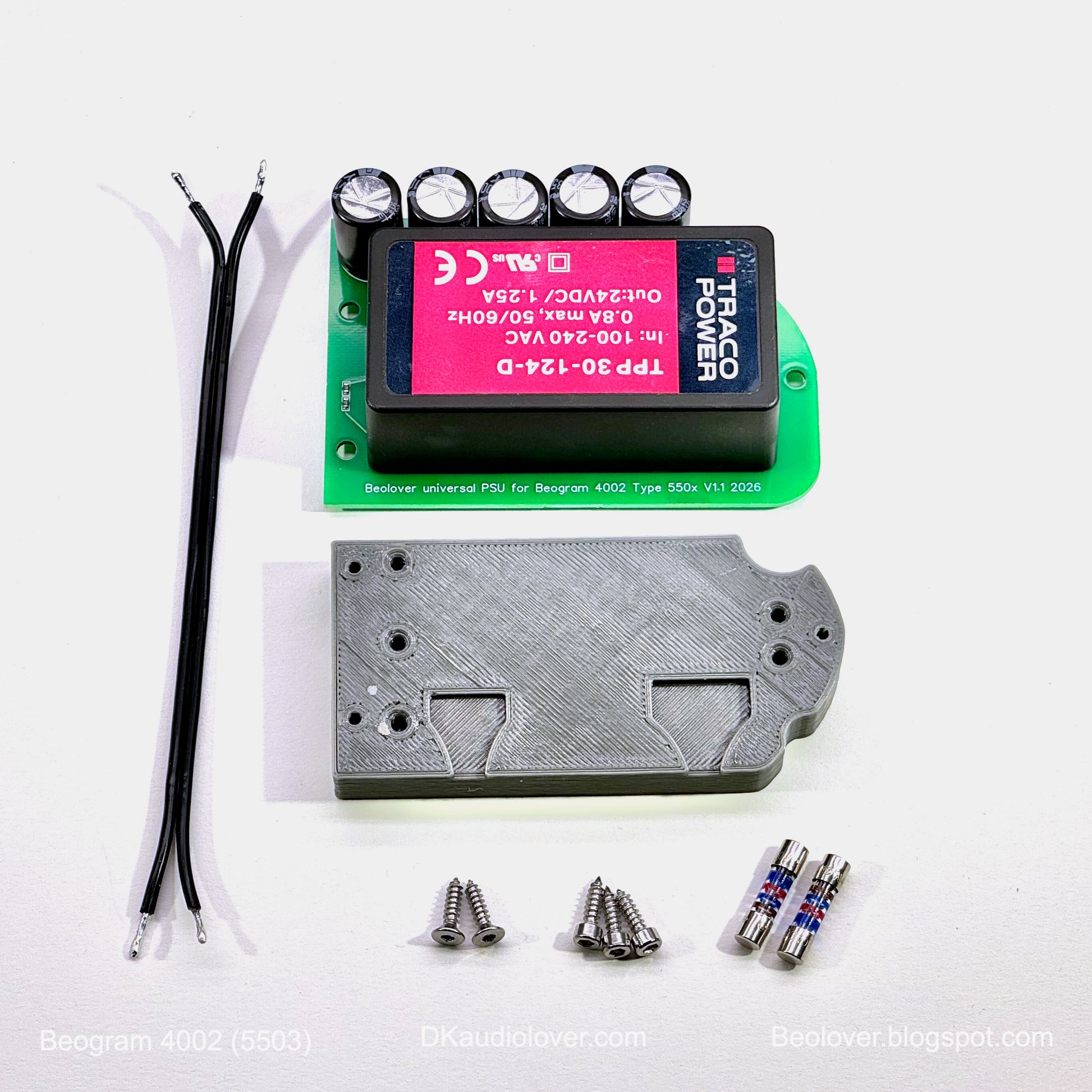

• Includes adapter plate, wire harness, bolts and 1.6A fuses (original fuses in the fuse box need to be replaced).

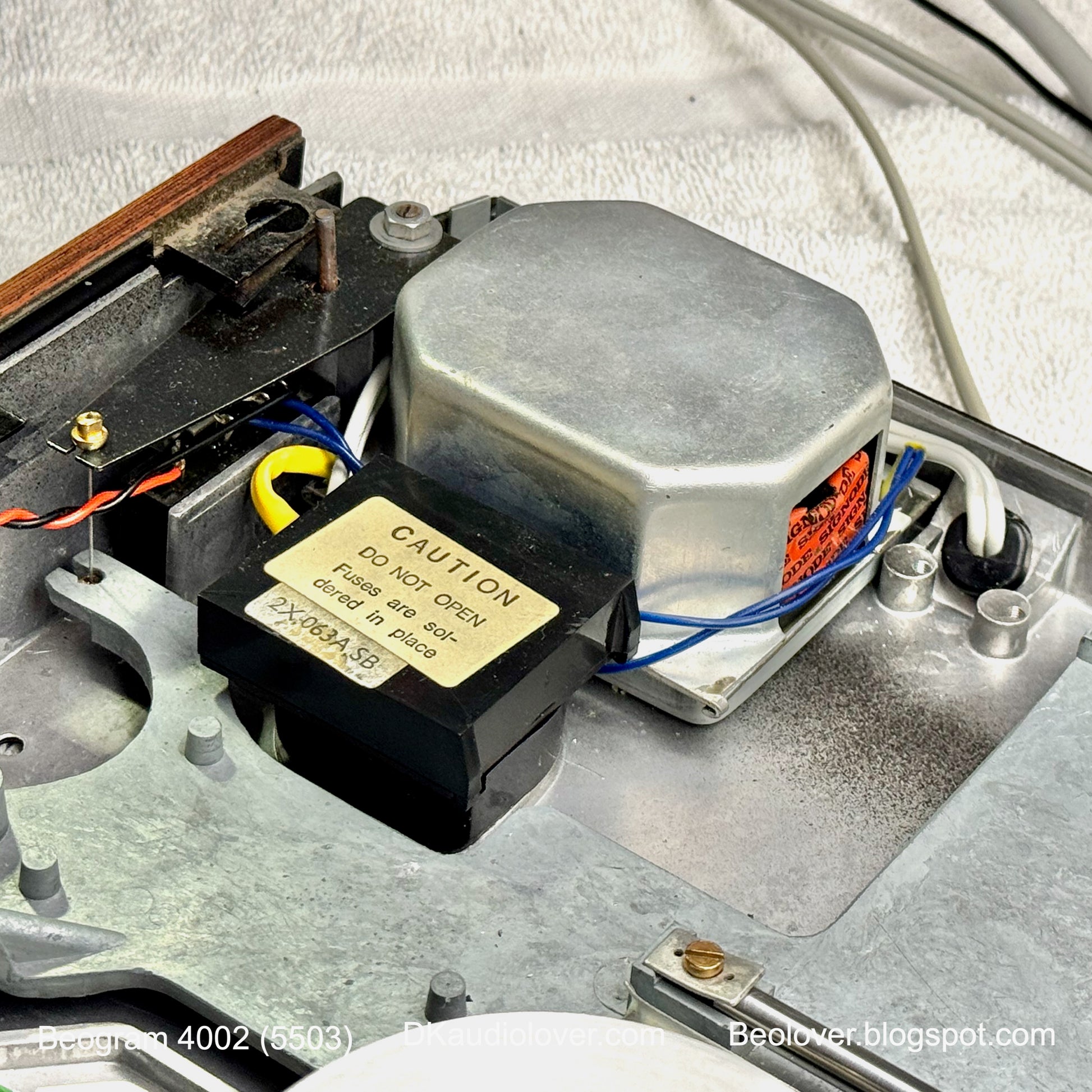

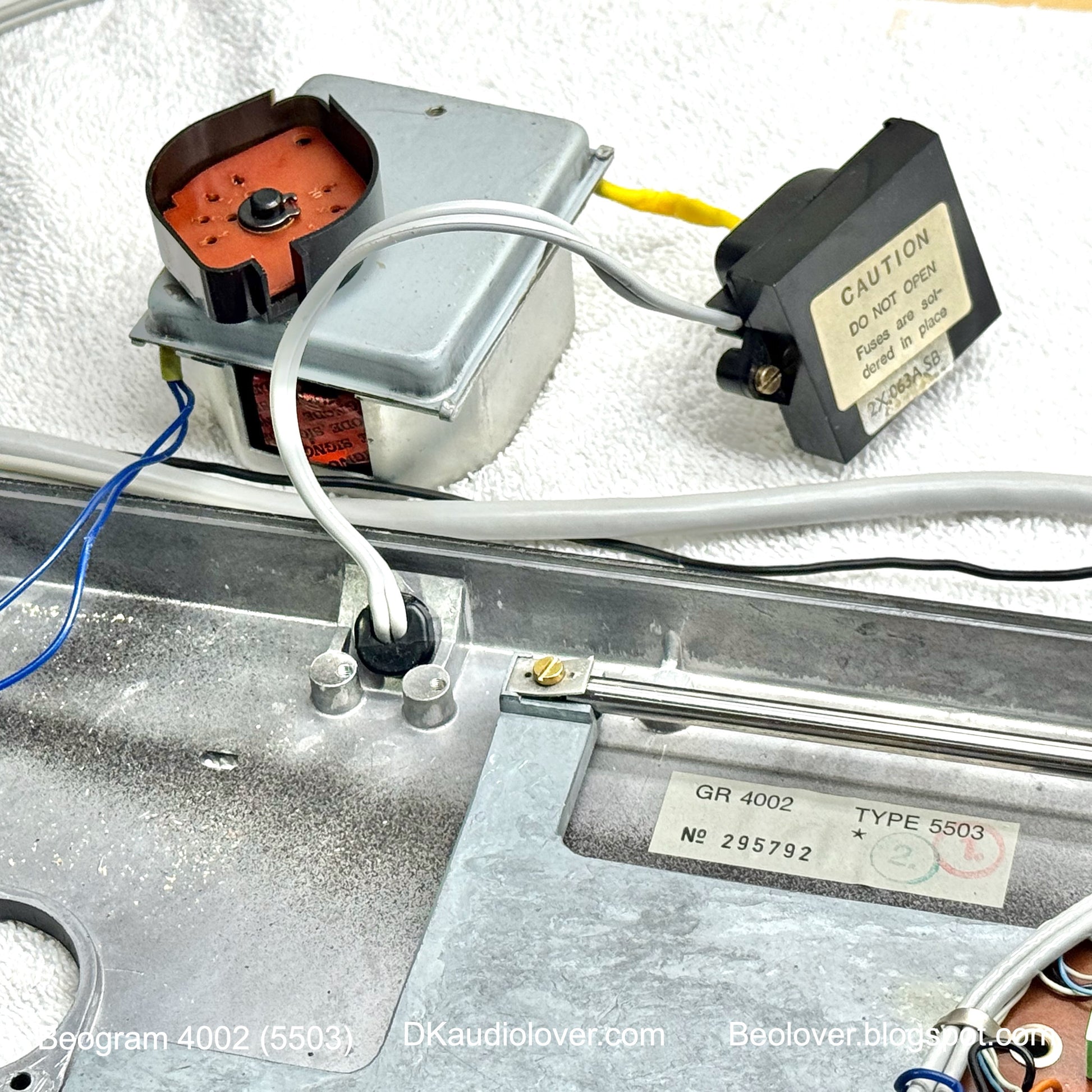

• Replaces original B&O part 8013137 "Mains transformer.

• See this post for installation and more information.
• Requires installation of the Beolover Efficient 22.8V Power Supply and Main Capacitors for Beogram 4002 (Types 550x) to reduce the power needs of the Beogram. This product is not able to provide enough current for the original configuration of the 550x Types.

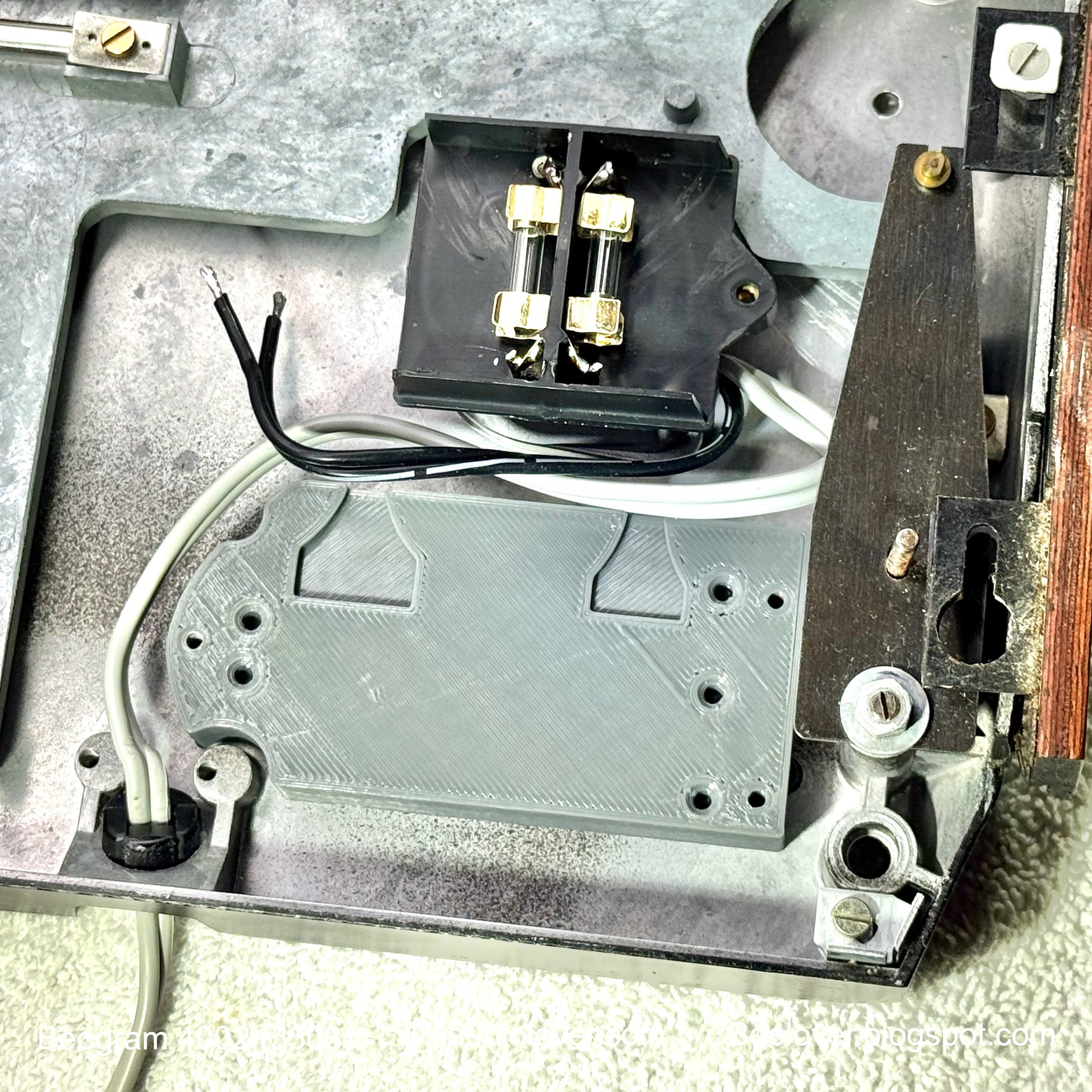

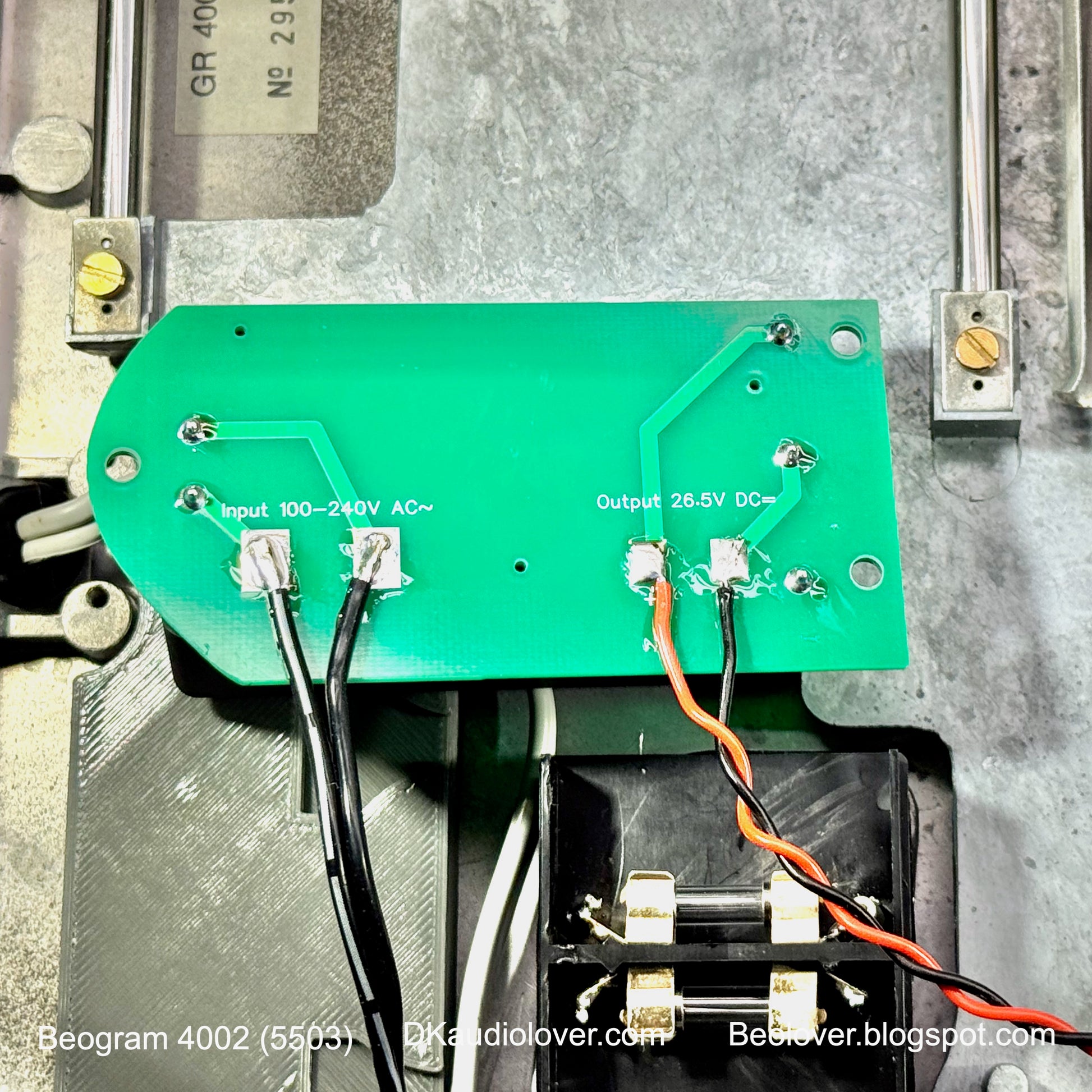

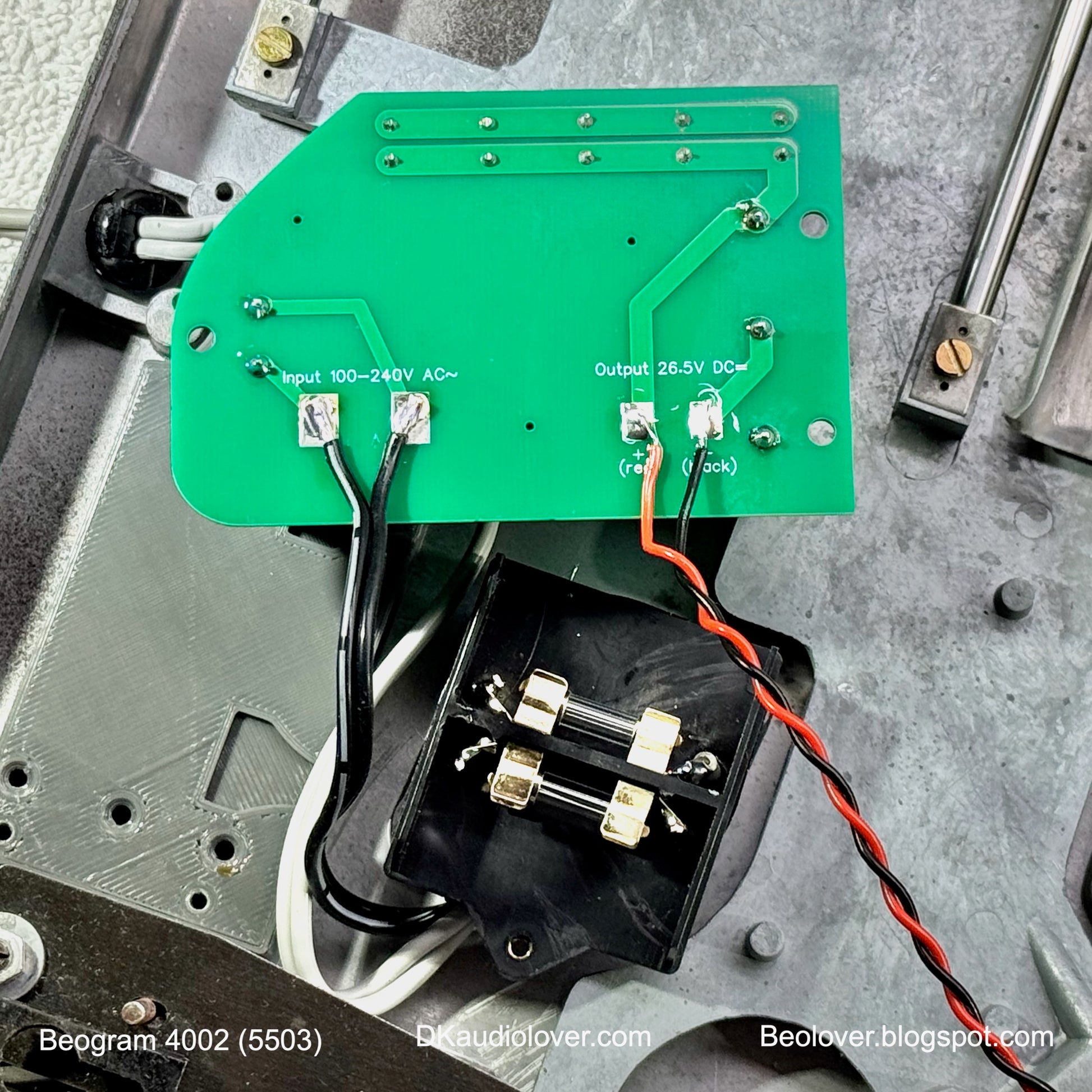

• Installation requires moderate soldering capabilities (wires need to be soldered to terminals in the fuse box and to the solder pads of the breakout board of the supply).

• Safety first: Potentially lethal voltages can be present during the installation of this part. Unplug your Beogram before installation. Ensure that the supply is bolted firmly to the adapter plate, and that the fuse box cover is in place before powering the unit up after installation.
